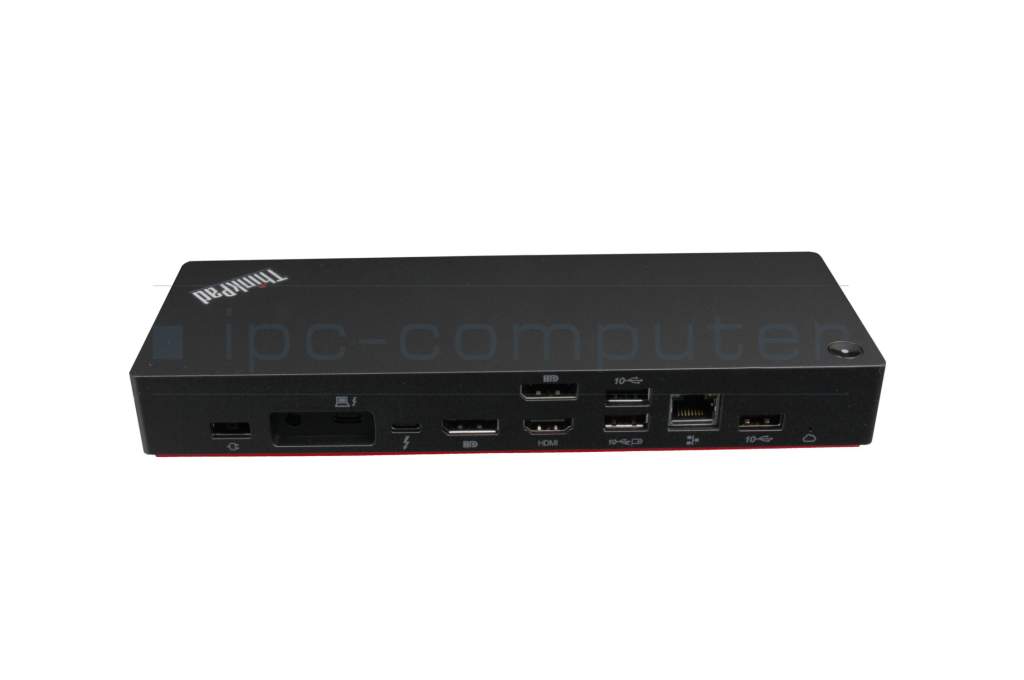

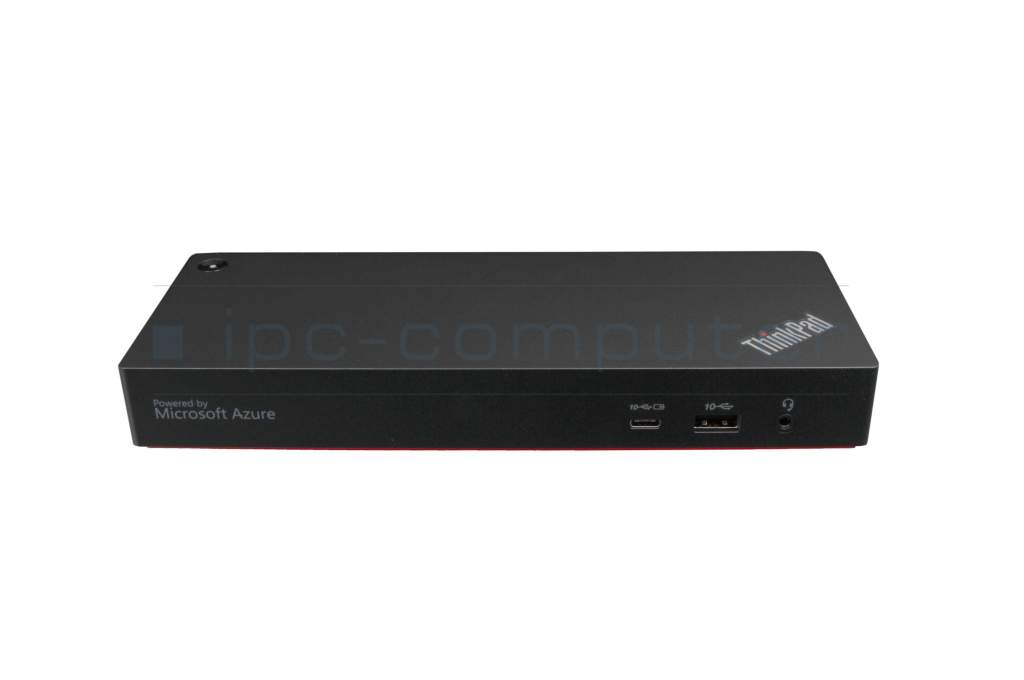

40B10135EU Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock

40B00135EU Lenovo ThinkPad Universal Thunderbolt 4 Dock incl. 135W ac-adapter

In stock

240.75 $

incl. Tax (19%)
plus shipping charges

PRIPC2 IPC-Computer Thunderbolt 4 Quad Display Port Replicator incl. 160W ac-adapter

In stock

212.93 $

incl. Tax (19%)
plus shipping charges

Product Info

Manufacturer: Lenovo
Item Number: 40B10135EU
Sub-Partnumbers: SD20W66858, 201-200986, 40B1, 5D20V25726, DK2131
Sicherheitsinformationen: Sicherheits- & Herstellerkontakt-Informationen

Common data

Condition: New

Technical Data

Connexion to the laptop: Thunderbolt 4
Connectors: 1x Audio-Combo
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI 2.1
1x Thunderbolt 4
1x USB-C
2x DisplayPort 1.4
2x Kensington-Lock
4x USB-A 3.2 Gen 1
Max. resolution of external monitors: 1x UHD - 3840x2160
1x UHD+ - 5120x2880 @ 60Hz
2x UHD - 3840x2160
3x UHD - 3840x2160
Delivery includes: AC-Adapter
Installation manual
License Agreement
Manual
Port Replicator
USB-C cabel

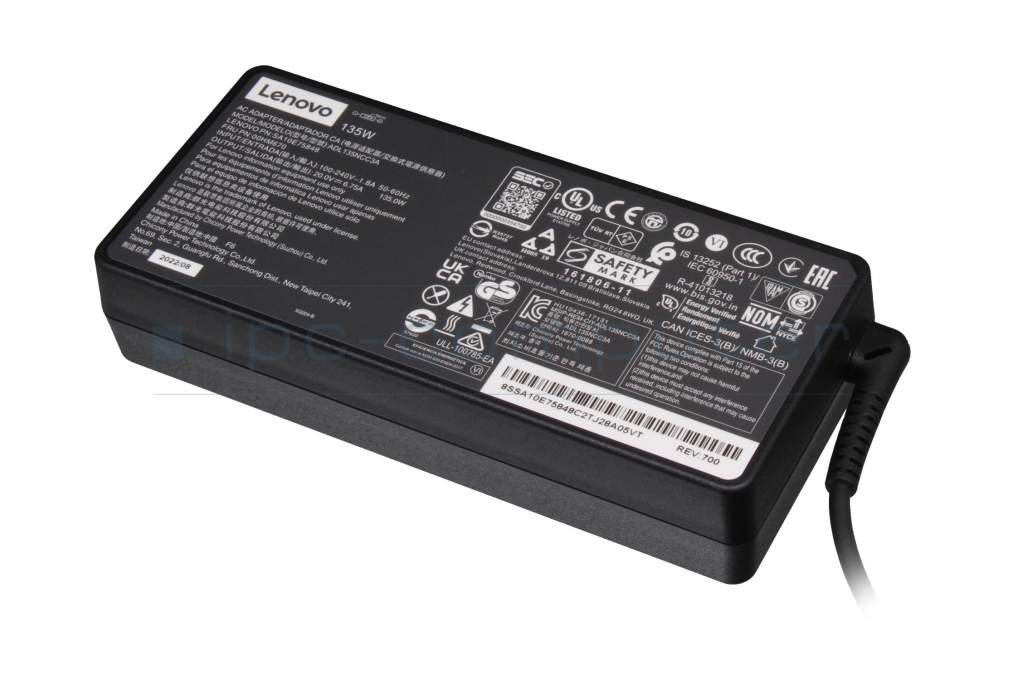

Included ac-adaptor: 135W
Compatible operating systems: Chrome
Linux / Ubuntu
Mac OS
Windows 10 (32bit/64bit)
Windows 11
Length / Width / Hight: 22 cm / 8 cm / 3 cm

Pros

Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.

With a Dock connected via USB type-C, no additional power supply needed to operate your laptop and charge your battery. Please note that a maximum power consumption of 100 watts is possible via the USB-C connection. (may differ a little between manufacturers and constellation of laptop and dock). If your laptop has a higher power consumption, you will still need a additional power supply for operation.

All your wishes are fulfilled with this innovative dock. It offers unlimited compatibility and flexibility thanks to the variety of connections and its remote options.

Connections: All-in-one cable. The ThinkPad Universal Thunderbolt™ 4 Smart Dock offers more than 11 PC ports. So you can connect an 8K monitor or up to four 4K monitors.

Universal dock compatibility:
The universal dock supports Thunderbolt 3 and 4, USB 4 and USB-C, providing additional compatibility in multi-BS environments.

On top, it offers innovative remote management:
Remote firmware updates enable without a connected PC, remote port management, data analysis reports, diagnostic tools and Microsoft Azure Sphere security solution. This allows you to optimize IT managers' workflows and increase their productivity.

Video resolution
Maximum :8K

Number of Displays
Maximum :4 x 4K or 1 x 8K

Connection
0.7 m Thunderbolt 4 Cable

Video Port
2 x DisplayPort 1.4
1 x HDMI 2.1
1 x Thunderbolt 4

USB Port
4 x USB-A 3.1 Gen 2* (10 Gbps,
1 x always-on charging)
1 x USB Type-C (10 Gbps, 5V/3A)
1 x Thunderbolt 4 (40 Gbps, 5V/3A)

Videos & Contributions

Using a laptop with a dock even when it is folded down

In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.

Learn more >

Which USB dock connector do I need for my notebook?

To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.

Learn more >

The "secret" with the power button

Why doesn't my notebook switch on when the docking station is switched on? Why does the power button on the docking station not work? Today we are getting to the bottom of these questions.

Learn more >

Docking station vs. port replicator

How does a docking station differ from a port replicator? This is a common question. In this post we would like to answer this question for you.

Learn more >

The power button does not activate the notebook?

If the power button function of the docking station is not supported by the notebook. - "Wake On AC" can help

Learn more >

Important and useful informations about laptop Docking stations

Frequently asked questions about Docking stations

Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.

All questions about Docking stations

Docking stations FAQ
