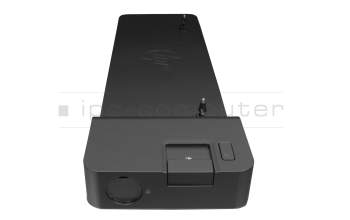

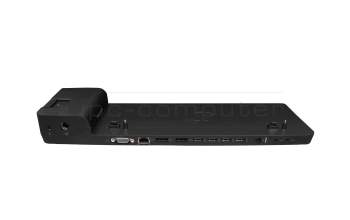

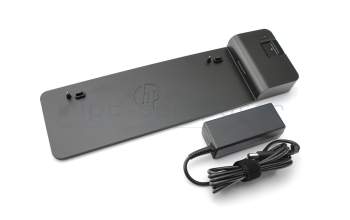

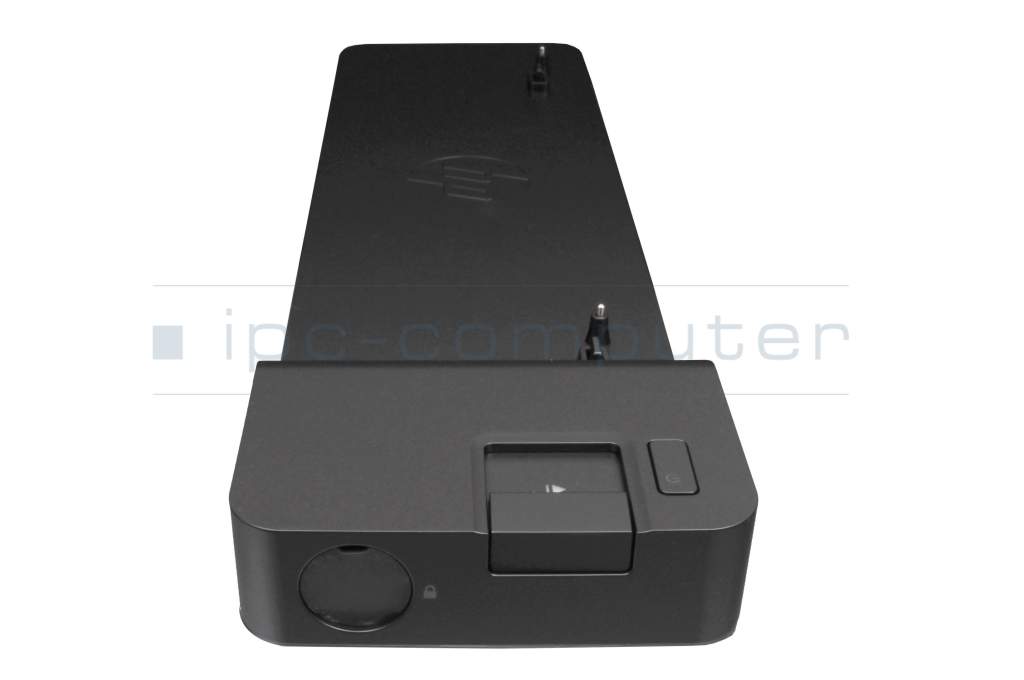

HP D9Y32AA#ABU UltraSlim Docking Station incl. 65W Netzteil
- Manufacturer
- HP
- Item Number
- D9Y32AA#ABU
- Primary Partnummer
- D9Y32AA
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Internal docking port

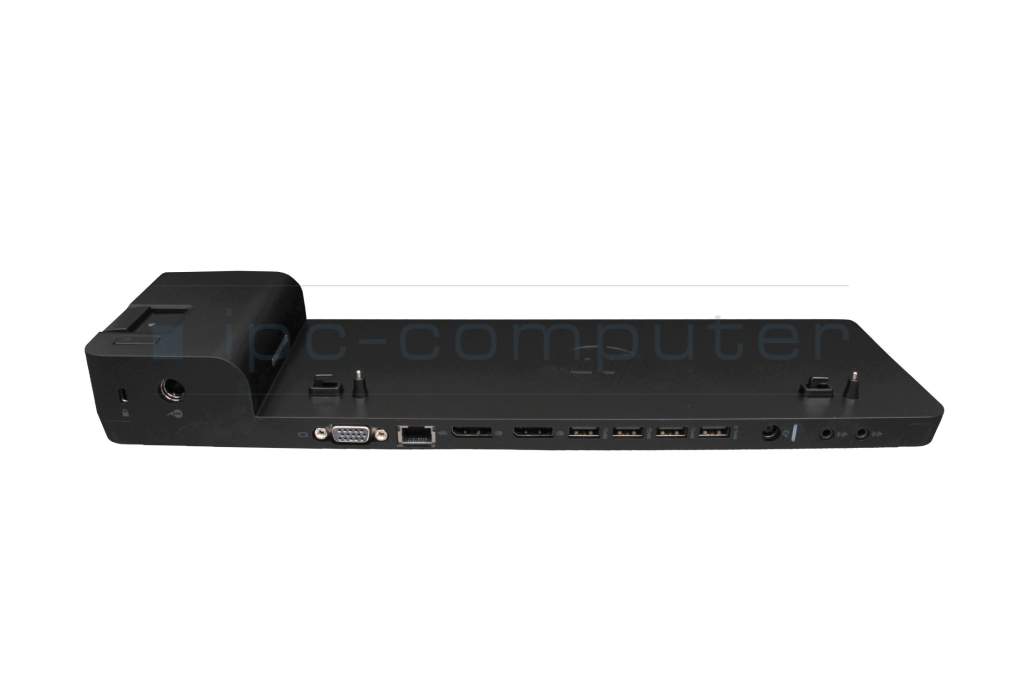

- Connectors
-
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x Kensington-Lock
1x VGA
1x headphone (line-out)
1x microphone (line-in)
2x DisplayPort
4x USB-A 3.2 Gen 1 - Max. resolution of external monitors
-
1x WUXGA - 1920x1200

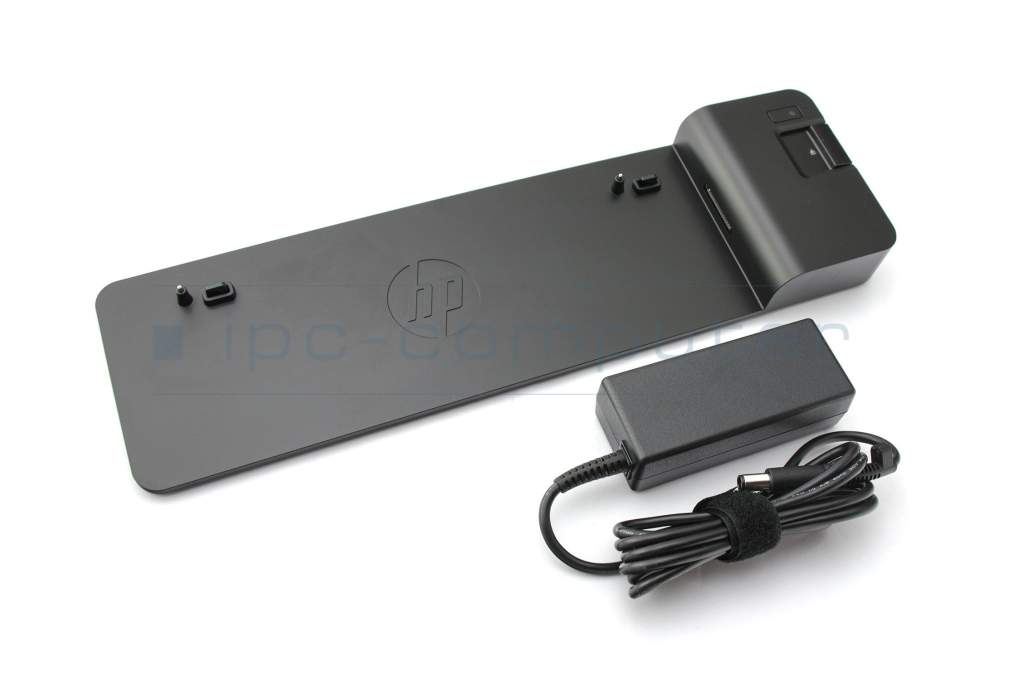

2x UHD - 3840x2160 - Delivery includes
-
Docking Station
Manual
Power cable - Included ac-adaptor
- 65W
- Compatible operating systems
-
Windows 10 (32bit/64bit)
Windows 7 (32bit/64bit)
Windows 8 (32bit/64bit)
Windows 8.1 (32bit/64bit) - Length / Width / Hight
- 36,5 cm / 10.5 cm / 4 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
Note
Please compare the wattage of the power supply belonging to your laptop with the voltage of the power supply which comes with this docking station. To use the full function of your laptop, especially under full load, the wattage of the docking station power supply should be the same or higher than the original one that comes with you laptop.
Benefit from compatibility with legacy and future video devices of your choice thanks to the dual DisplayPort ports and VGA connector. With the Ethernet/LAN port, you'll be online in no time. Line-in and line-out ports cater to all audio needs. Four USB 3.0 ports provide high-speed connectivity to the USB devices you use most often. USB 3.0 reduces data transfer time (unlike USB 2.0 ) and is backward compatible with USB 2.0 as well as bi-directional. Headphone and microphone jacks support your multimedia and video conferencing needs.
Suitable for the following series:
- HP EliteBook Folio 1020 G1
- HP EliteBook Folio 1040 G1, G3
- HP EliteBook 1040 G2
- HP EliteBook Revolve 810 G1, G2, G3
- HP EliteBook 820 G1, G2, G3, G4
- HP EliteBook 840 und 850 G1, G2, G3, G4, G5, G6
- HP EliteBook 830 G5, G6
- HP EliteBook 720, 740, 750 G1, G2
- HP EliteBook 725 G3, G4
- HP EliteBook 745, 755 G3, G4, G5, G6
- HP EliteBook 735 G5, G6
- HP ProBook 640, 650 G2, G3, G4, G5
- HP ProBook 645 G2, G3, G4, G5
- HP ProBook 655 G2, G3
- HP EliteBook Folio 9480m, 9470m
- HP ZBook 14u G4, G5, G6
- HP ZBook 15u G3, G4, G5, G6
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N D9Y32AA#ABU
- HP EliteBook Revolve 810 G1 , HP EliteBook 840 G4 , HP EliteBook 820 G4 , HP EliteBook 745 G6 , HP EliteBook 755 G5 , HP EliteBook Folio 9470m , HP EliteBook Revolve 810 G1 , HP EliteBook 840 G1 , HP EliteBook 725 G2 , HP EliteBook 745 G2
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
