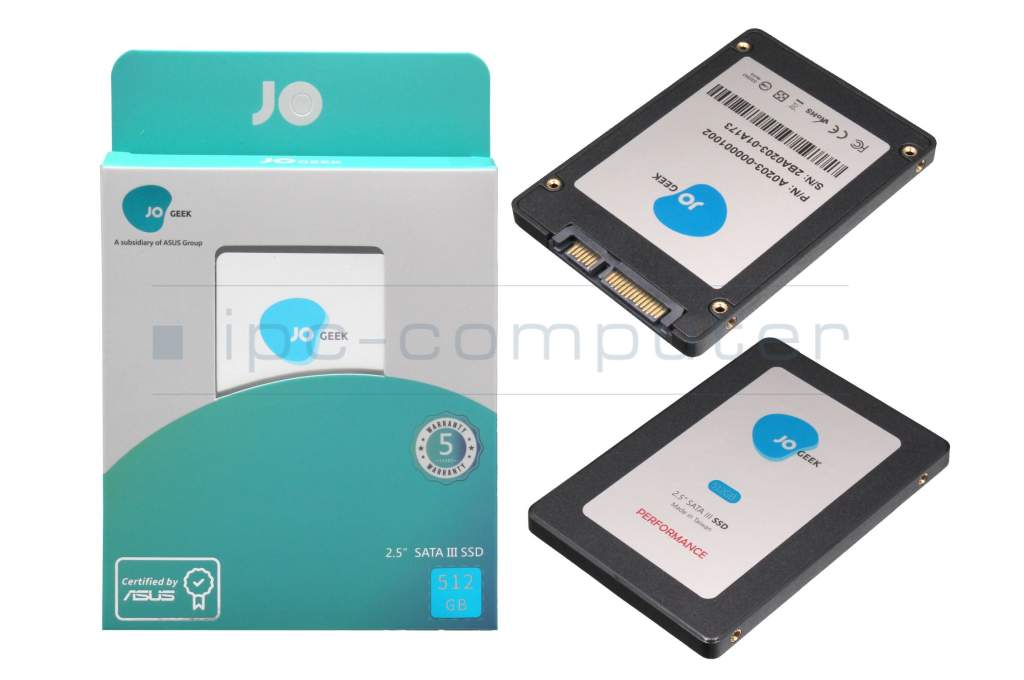

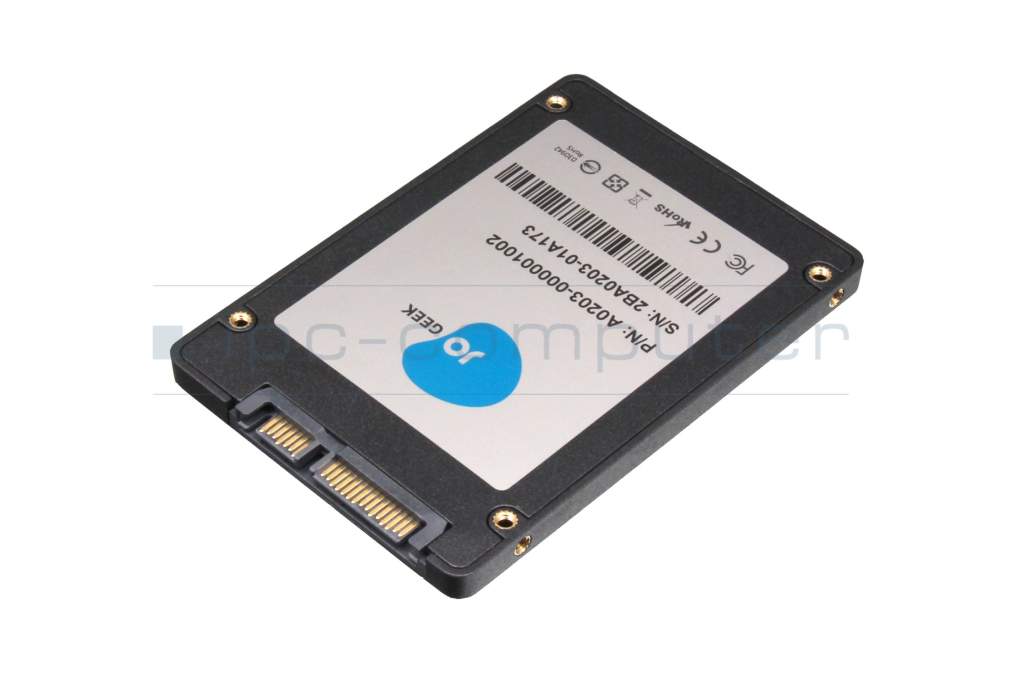

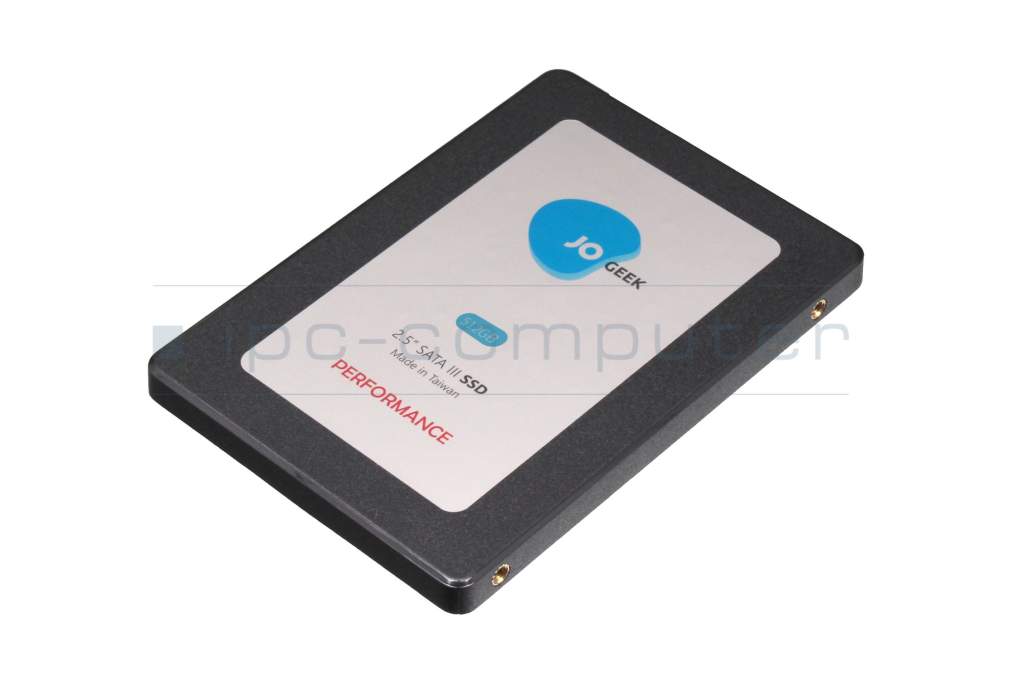

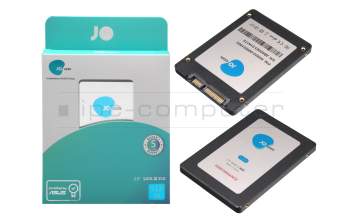

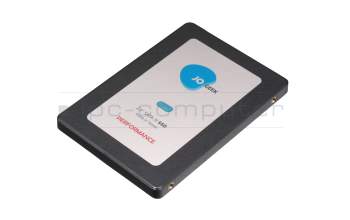

A0203-000001008 JoGeek SSD 512GB

SS02C1 SSD 500GB (2.5 inches / 6.4 cm)

In stock

48.15 $

incl. Tax (19%)
plus shipping charges

Product Info

Manufacturer: JoGeek
Item Number: A0203-000001008
Primary Partnummer: A0203-000001001
Sicherheitsinformationen: Sicherheits- & Herstellerkontakt-Informationen

Common data

Condition: New
Manufacturer: JoGeek

Technical Data

Capacity (GB): 512 GB
Interface: S-ATA III (6,0 Gb/s) SSD
Form factor: 2.5 inches / 6.4 cm
Height (mm): 7 mm
Sequential Read (MB/s): 550
Sequential Write (MB/s): 500
Special features: 16bit CRC / LDPC ECC engine / S.M.A.R.T support / TRIM support

JoGeek is the new subsidiary of Asus, which offers universal spare parts for notebooks and mobile devices. IPC-Computer is official distributor for over 10 years, of one of the world’s largest notebook manufacturers Asus and from now on also exclusive JoGeek distributor in Europe. The first-class items are produced in Taiwan with very high standards. The NVMe and SATA SSD’s convince with faster read and write speed, tailored to the needs of your notebooks. Our 1st choice when it comes to upgrades in our in-house repair shop.

Pros of the SSD

working noiseless
low power-consumption
longer period of operation in battery-mode
extremely fast access times
no mechanical abrasion
extremely tough against agitation and vibration
SSD’s tolerate temperatures between 0 and 70 degree of Celsius

Videos & Contributions

JoGeek by ASUS 2.5" SATA 3 SSD - Product presentation

Video product presentation of the JoGeek 2.5" SATA 3 SSDs.

Learn more >

Update the SSD on the notebook - this is how it's done

In this video we show an example of an SSD replacement on an Asus Ultrabook.

Learn more >

New SSD? - How to move your data to your new SSD

Have you bought a new SSD, but want to keep the data from your old one? We show how this is possible.

Learn more >

This is how you can recognize a failure of your SSD at an early stage

A hard drive failure is one of the worst things that can happen to you. Because private data is so often irrevocably lost. In this post, we'll show you how to check the health status of your hard drive.

Learn more >

Important and useful informations about laptop Hard Disk Drives

Frequently asked questions about Hard Disk Drives

Are the S-ATA standards compatible?
Yes, the SATA standards are compatible to each other, however the slowest involved connection type will always be used. This means that connecting a SATA 6Gb/s SSD to a SATA 3Gb/s controller will severely limit its peak performance.
More information can be found in the FAQ “What is the difference between P-ATA (IDE), S-ATA, S-ATA II and S-ATA III?”
How can I format or partition a hard drive?
You can use the disk management utility built into Windows 10.
1. Hit the Windows key and type "Control Panel", then hit enter
2. Left click on Administrative Tools
3. Select Computer Management and then Disk Management.
4. After a short loading time you will be shown all connected drive with their respective partitions.
5. Right click on the unformatted drive and click format.
6. Follow the wizard to complete the formatting process.
What hard drive can I install in my Notebook?
You have to pay attention, that your hard drive uses the same connection type and form factor or height.
With the very common 2.5” hard drives you have to check whether your notebook still uses the old PATA standard or SATA and also you have to check what height is compatible since there are multiple heights. 7mm, 9mm and 15mm are the most common ones.
For SSDs there are also small form actors like mSATA or M.2. With the latter one you have to check if the slot supports the SATA and/or PCIe (NVMe) protocol.
The only thing that is not limited is the capacity and speed of your new drive.
What is the difference between P-ATA (IDE), S-ATA, S-ATA II and S-ATA III ?
The difference is in the type of connection and its speed.
- P-ATA/IDE (IDE 100/133) Parallel connection with transfer rates of up to 1 Gbit/s or 100 MB/s to 133 MB/s.
- S-ATA (SATA 150) Serial connection with transfer rates of up to 1.5 Gbit/s or 150 MB/s.
- S-ATA II (SATA 300) Serial connection with transfer rates of up to 3.0 Gbit/s or 300 MB/s.
- S-ATA III (SATA Revision 3.0) Serial connection with transfer rates of up to 6.0 Gbit/s or 600 MB/s.
