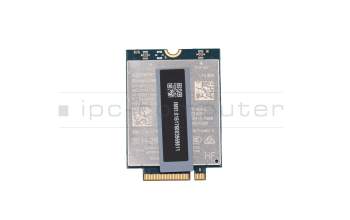

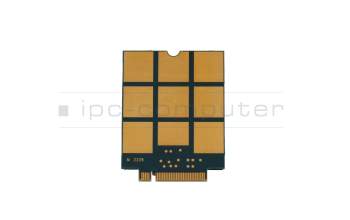

EM05-G original Quectel WWAN adapter

Quectel EM05-G: The perfect solution for your IoT and M2M applications!

The Quectel EM05-G LTE Cat 4 module in the compact M.2 form factor (30.0 mm × 42.0 mm × 2.3 mm) offers space-saving integration into smaller and slimmer devices. With a maximum data rate of up to 150 Mbps downlink and 50 Mbps uplink, this module is specifically optimized for machine-to-machine (M2M) and Internet of Things (IoT) applications.

Thanks to support for globally popular LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA, and CDMA networks, the Quectel EM05-G ensures reliable data connections on all major networks.

The module offers a variety of internet protocols, industry-specific interfaces, and comprehensive features such as USB drivers for Windows 7/8/8.1/10/11, Linux, and Android, as well as DFOTA (Differential Firmware Over-the-Air). These comprehensive features expand the module's application possibilities for a wide range of M2M applications, including industrial routers, rugged PDAs, tablet PCs, video transmission, and digital signage.

Key Features:

LTE Cat 4 module optimized for broadband IoT/M2M applications
Worldwide LTE and UMTS/HSPA+ coverage for global connectivity
MIMO technology ensures high data rates and reliable connections in wireless communication systems (DL MIMO, Rx diversity antenna)

Features:

Form factor: M.2
Dimensions (mm): 30.0 × 42.0 × 2.3

Data transfer (max.):
LTE (Mbps) LTE-FDD: 150 (DL)/50 (UL); LTE TDD: 130 (DL)/30 (UL)
UMTS DC-HSDPA: 42 Mbit/s (DL)/HSUPA: 5.76 Mbit/s (UL) WCDMA: 384 kbit/s (DL/UL)
CDMA2000 EVDO: 3.1 Mbit/s (DL)/1.8 Mbit/s (UL) 1X Advanced: 307.2 kbit/s (DL)/307.2 kbit/s (UL)
Protocols: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/SMTP/MMS/FTPS/SMTPS/SSL/FILE
(Max. Downlink: 150 Mbit/s / Uplink: 50 Mbit/s)

Frequency bands (MHz):
-G (Global)
LTE: B1/2/3/4/5/7/8/12/13/14/18/19/20/25/26/28/66/71/38/39/40/41;
WCDMA: B1/2/4/5/6/8/19

-E (EMEA/Australia/New Zealand)
LTE FDD: B1/3/7/8/20/28;
LTE TDD: B38/41;
WCDMA: B1/8

-CN (China/Thailand/India)
LTE FDD: B1/3/5/8; LTE TDD: B34/38/39/40/41; WCDMA: B1/5/8; EVDO/CDMA: BC0

Control via AT commands: 3GPP TS 27.005, 3GPP TS 27.007, and Quectel Enhanced AT Commands

Supply voltage range: 3.135 V ~ 4.4 V, typ. 3.3 V

Operating temperature: -30 °C ~ +70 °C
Extended temperature: -40 °C ~ +85 °C

Software features:
USB-serial driver for Windows 7/8/8.1/10/11, Linux 2.6–5.15, Android 4.x/5.x/6.x/7.x/9.x/12.x
GNSS driver for Android 4.x/5.x/6.x/7.x/8.x/9.x/12.x
RIL driver for Android 4.x/5.x/6.x/7.x/8.x/9.x/12.x
MBIM driver for Windows 8/8.1/10/11, Linux 3.18–5.15
NDIS driver for Windows 7*/8/8.1/10/11
QMI_WWAN driver for Linux 3.4–5.15

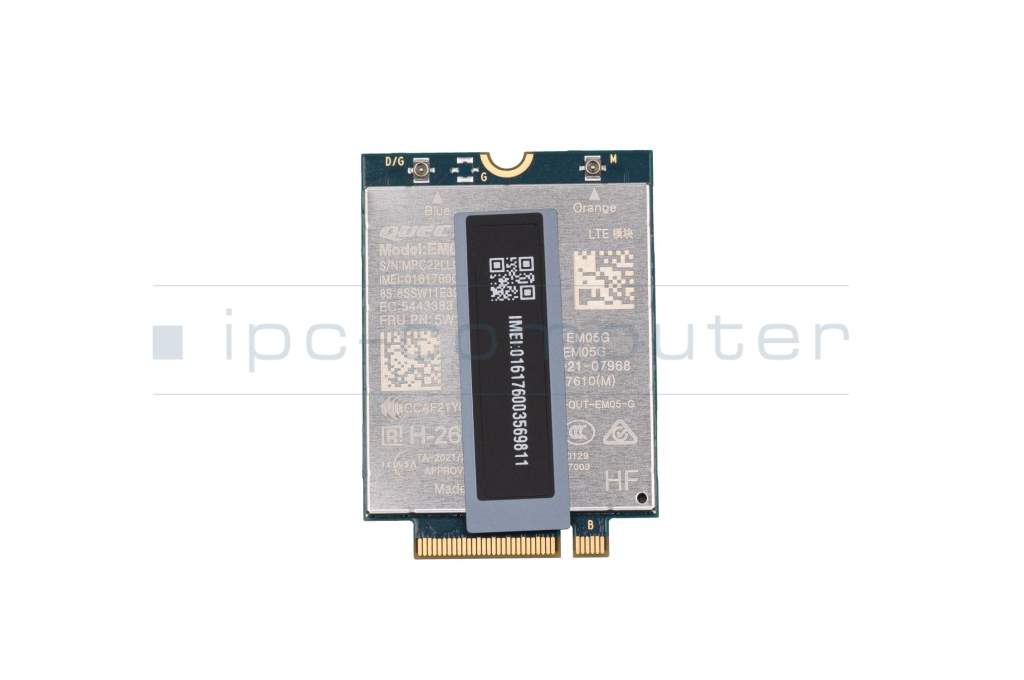

Note: Please note the interfaces - this is a Quectel EM05-G variant, which has 1x ANT_MAIN and 1x ANT_DRX/ANT_GNSS (combined port).

*All information according to the manufacturer Quectel
