Dell CN-0MT6V9-CMC00 Thunderbolt Dock WD22TB4 incl. 180W Netzteil
PRIPC2 IPC-Computer Thunderbolt 4 Quad Display Port Replicator incl. 160W ac-adapter
plus shipping charges
Product Info
- Manufacturer
- Dell
- Item Number
- CN-0MT6V9-CMC00
- Primary Partnummer
- CN-0MT6V9-CMC00
- Sicherheitsinformationen
- Sicherheits- & Herstellerkontakt-Informationen
Common data
- Condition
- New
Technical Data
- Connexion to the laptop
- Thunderbolt 4
- Connectors
-
1x DC-In (Power supply)
1x Ethernet (RJ-45)
1x HDMI
1x Kensington-Lock
1x Noble Wedge Slot
1x Thunderbolt 4
1x USB-A 3.2 Gen 1
1x USB-C 3.2 Gen 2 DisplayPort
2x USB-A 3.2 Gen 1 - Max. resolution of external monitors
-
1x QHD - 3840x4320 @ 60Hz
2x QHD - 3840x2160 @ 60Hz
3x QHD - 3440x2160 @ 60Hz
4x QHD - 3440x1440 @ 3x60Hz + 1x30Hz - Delivery includes
-

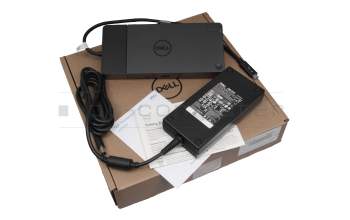

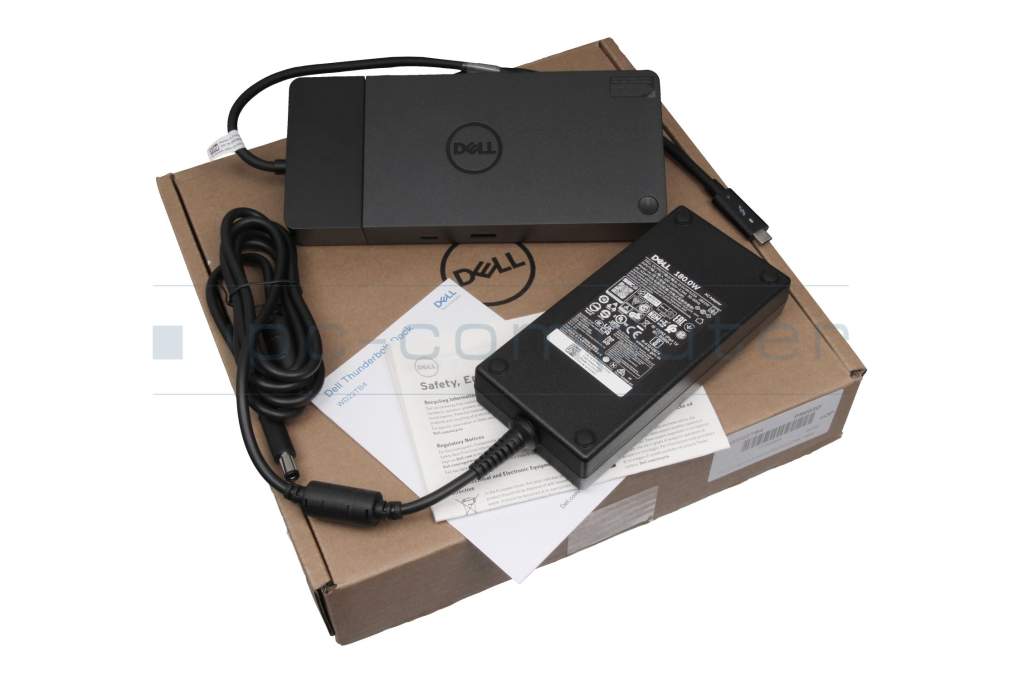

AC-Adapter
Port Replicator
Power cable
Safety Information - Included ac-adaptor
- 180W
- Compatible operating systems
-
Linux / Ubuntu
Windows 10 (32bit/64bit)
Windows 11 - Length / Width / Hight
- 20,5 cm / 9 cm / 2.9 cm
Pros
Use the existing interfaces of your laptop separately. Easily connect and disconnect the ports for e.g. mouse, printer, USB in a fast and secure way. Mirroring or extending your desktop to external monitors.
Dell's flagship dock is the WD22TB4, a Thunderbolt4 dock with a special modularity.

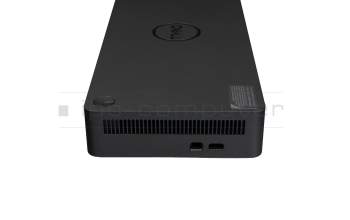

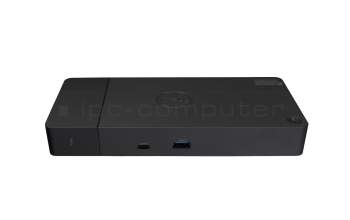

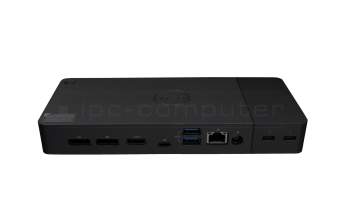

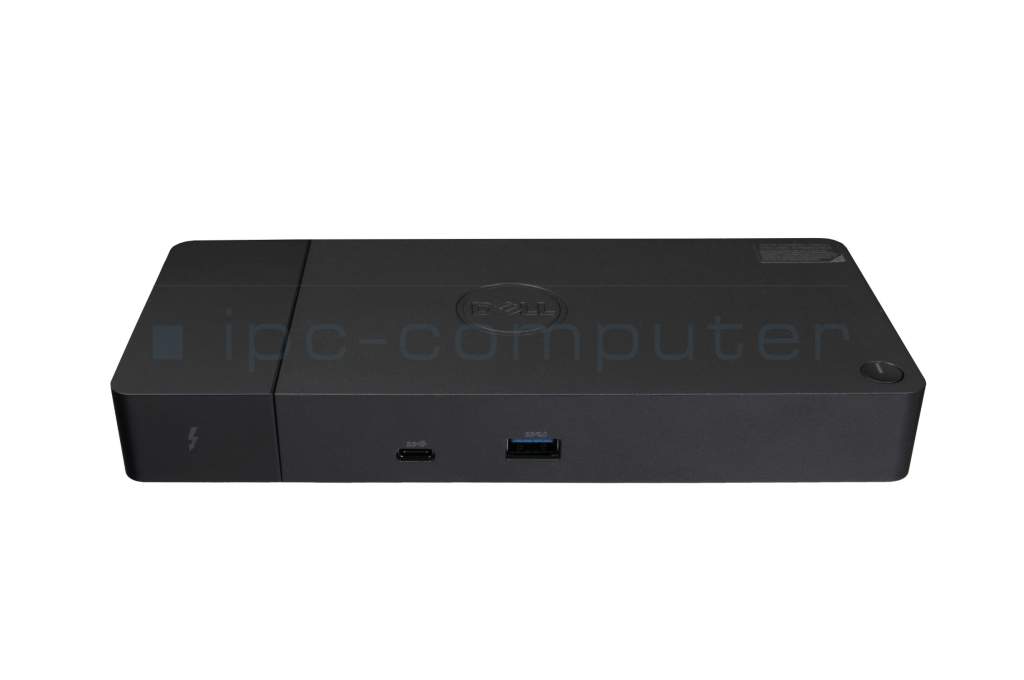

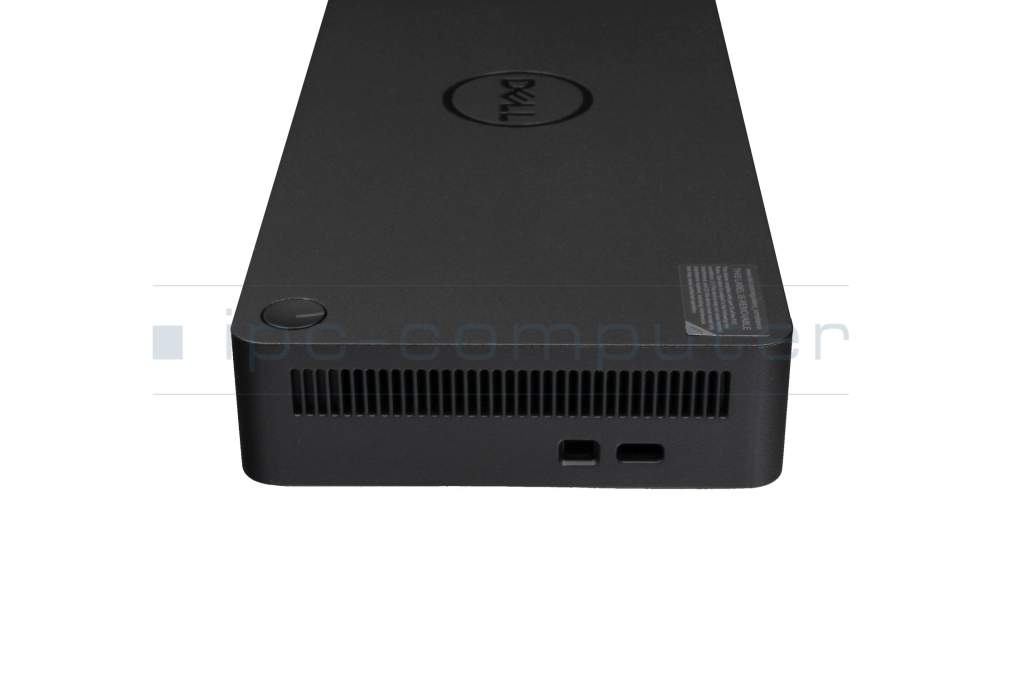

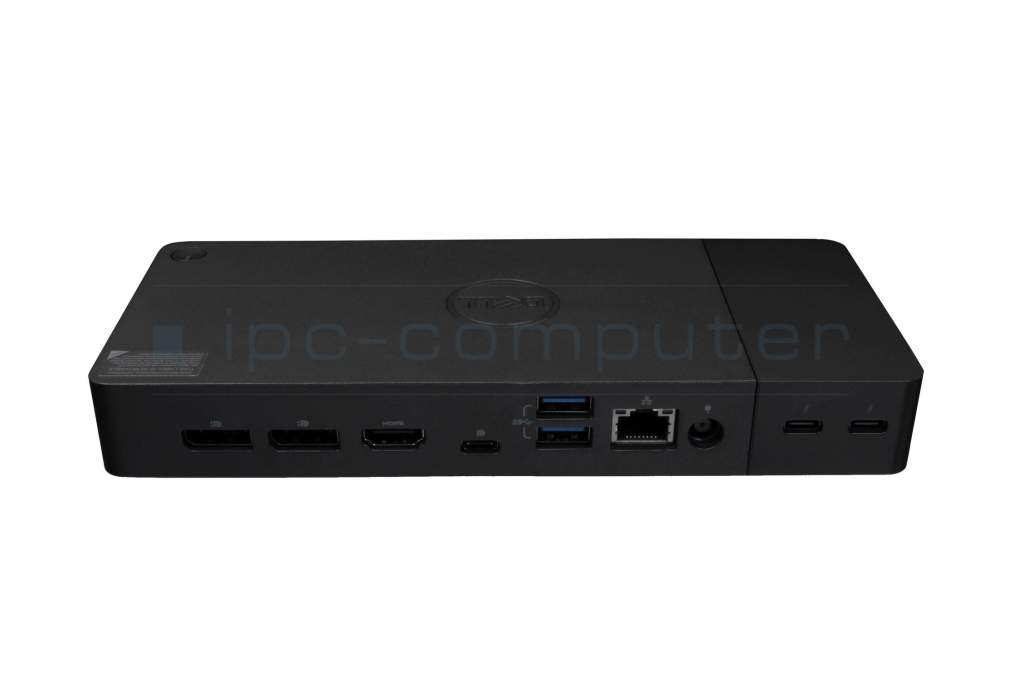

The front of the dock features a single USB-C 3.2 Gen 2 port and a USB-A 3.2 Gen 1 port with PowerShare (always on). On the back of the device are two DisplayPorts, 1.4 port, one HDMI 2.0 port, another USB-C 3.2 Gen 2 port (with DisplayPort support), two more USB-A 3.2 Gen 1 ports with PowerShare, a gigabit LAN port and the DC input. The dock supports up to 130 watts of charging power and can connect to up to three 4K 60Hz displays plus a single 4K 30Hz monitor simultaneously. At one end is a detachable module that includes two Thunderbolt4 ports. This can be swapped out for a module with one or two USB-C cables. The Dell Port Replicator WD22TB4 offers a particularly convenient feature for Dell notebook users: the power button. With this feature, users can turn their notebook on and off directly via the power button on the port replicator, without having to press the power button on the laptop itself. This function, exclusively available for Dell notebooks, significantly increases user-friendliness and efficiency.
Note on the USB-C connector:
Charging capacity with 180 watt AC adapter is 130 watts on Dell systems and 90 watts on non-Dell systems.
On non-Thunderbolt systems, the dock's Thunderbolt ports function as USB Type-C ports.
Important information:
In order for this dock to be recognized by your system, update all your drivers.
Link_user_manual_and_info_WD22TB4
Category
- Category
- Dockings
- Usage
- Laptop
- Excerpt of suitable models for P/N CN-0MT6V9-CMC00
- Alienware x15 R1 , Dell Latitude 15 (5520) , Dell Inspiron 16 Plus (7620) , Dell Precision 15 (5570) , Dell Latitude 14 2in1 (9440) , Dell Latitude 14 Rugged (5430) , Alienware m18 R1 (DDR5) , Dell Precision 15 (5560) , Alienware m15 R6 , Dell Latitude 13 (7320)
You've found this article over a part number. We'll check if it's the correct sparepart for your machine. To do this, please insert the manufacturer and the name of the model in the order comment.
Videos & Contributions
Using a laptop with a dock even when it is folded down
In this quick tip we show how you can work with a docking station and an external monitor even when your laptop is folded down.
Learn more >Which USB dock connector do I need for my notebook?
To choose the right docking station for your notebook, you should know which USB port you need. In this video, we will go into the differences and special features of the USB ports.
Learn more >
The "secret" with the power button
Docking station vs. port replicator
The power button does not activate the notebook?
Important and useful informations about laptop Docking stations
Frequently asked questions about Docking stations
- Do docking stations work even if they can only be delivered with a stronger ac adapter?
Technically speaking, a more powerful power supply can be used without any problems and does not pose any danger to your device, as it always draws as much energy as it currently needs. The only disadvantage is the usually higher price of the more powerful product.
- Do I need special drivers for my docking station or port replicator?
In order to use your docking station or port replicator, you need the appropriate drivers. The easiest way to find these drivers is directly from the manufacturer of the docking station/port replicator. You will usually need the serial number or the exact model name.
The driver for our in-house port replicator can be found on our info page for the IPC port replicator.
- Is it possible to use an USB-C/USB-3.0 port replicator from different Manufacturers?
Yes, as general rule this is possible. Although you have to consider the power capacity and the type of the connection.
- What advantages does an USB-C port replicator/docking station grant?
The most remarkeble advantages in comparison to USB3.0, are a faster data transmission rate and the possibility to charge the device via USB-C. Also is USB-C becoming the default option for more and more devices.
- What port replicator do i require?
On the one hand you have to consider the compatibility of your device. If your laptop has no USB-C connection, it can cause problems with newer models. On the other hand the port replicator has to produce enough power and can not convert less watts than your Notebook needs. At last you can choose how many and what type of connections for peripherals you need.
